#include <meep.hpp> using namespace meep; const double eps1 = 12.0; const double eps2 = 1.0; const double dpml = 1.0; const double wg_width = 1.0; const double x_center = 8.0; const double y_center = 4.0; const double resolution = 10; const complex<double> freq = 0.15; const double fwidth = 0; double eps(const vec &p) { if (p.y() > y_center - 0.5*wg_width && p.y() < y_center + 0.5*wg_width) return eps1; return eps2; } int main(int argc, char **argv) { initialize mpi(argc, argv); const volume v = vol2d(2*x_center, 2*y_center, resolution); structure s(v, eps, pml(dpml)); s.set_epsilon(eps, true); // averaging fields f(&s); f.output_hdf5(Dielectric, v.surroundings()); continuous_src_time src(freq, fwidth); f.add_point_source(Ez, src, vec(x_center - 7.0, y_center + 0.0)); while (f.time() < 200) { f.step(); } f.output_hdf5(Ez, v.surroundings()); return 0; }
pngファイルの作成は
$ h5topng -S3 -Zc dkbluered -a yarg -A eps-000000.00.h5 -d ez.r ez-000200.00.r.h5 $ h5topng -S3 -Zc dkbluered -a yarg -A eps-000000.00.h5 -d ez.i ez-000200.00.i.h5
上記のプログラムの場合,場のデータが虚部,実部の順番で保存されるので,"-d ez.r"を付けないと虚部を用いたグラフになってしまう.Meepのホームページの図とは一致するが,libctlを用いた場合の結果と異なってしまう.

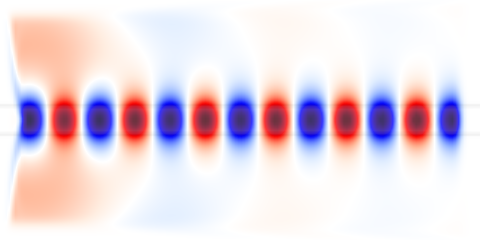

- 実部

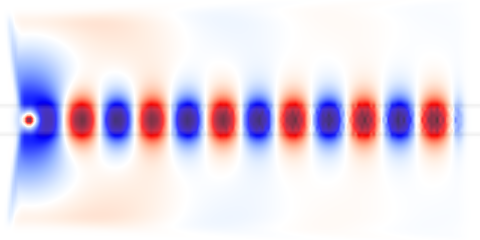

- 虚部
